| 앱 온도 제한 목록 |
| 소재 | 기본온도℃ | 소재 | 기본온도℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PVC-C | -20℃~95℃ | PVC-U | -5℃~45℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| FRPP | -20℃~120℃ | PPH | -20℃~110℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||
| PV디F | 40℃~150℃ | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 제품구조적 특징 |
1. 우수한 내화학성: 넓은 작동 온도 범위 -20°C ~ 95°C, 매체의 중이온 소비는 초순수 기준을 충족하고 선별하고 분류하는 기준을 충족합니다.
2. 강도, 인성, 분기 내식성이 강합니다.
3. 내구성: 변형 및 UV 저항성 기타 배관 시스템의 수명을 크게 연장합니다.
4. 하위 열전도율: 강철의 약 1/200; 자신의 입장에 대해.
5. 경량 : 강관의 1/5, 동관의 1/6에 해당하는 경량입니다.
6. 낮은 저항, 높은 유속: 바깥쪽 파이프 표면은 저장 공간과 접착을 제공합니다.
7.쉬운 설치, 저렴한 비용: 접착력과 나사산 연결이 가능하며 접착력이 가장 편리합니다.
| 비용 목록 |

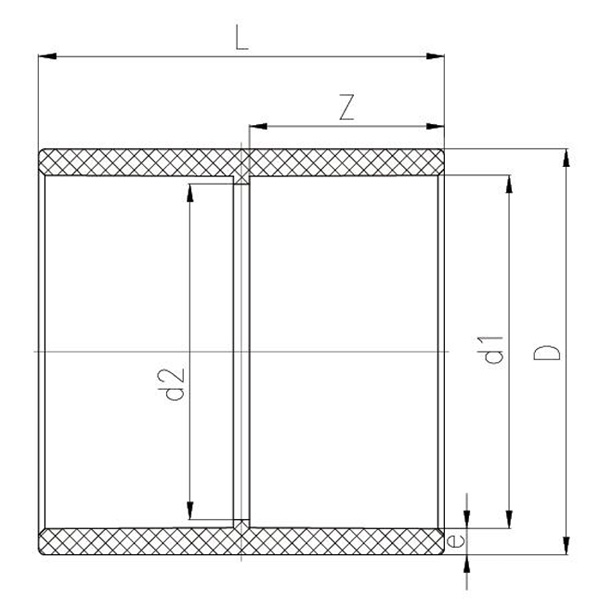

| 디N | D | d1 | d2 | 엘 | 지 | 전자 |
| 15 | 27 | 20 | 18 | 35 | 16 | 3.5 |
| 20 | 32 | 25 | 23 | 40 | 18.5 | 3.5 |
| 25 | 40 | 32 | 30 | 47 | 22 | 4 |
| 32 | 50 | 40 | 38 | 55 | 26 | 5 |
| 40 | 61 | 50 | 47 | 65 | 31 | 5.5 |
| 50 | 75 | 63 | 60 | 80 | 37.5 | t6 |
| 65 | 88 | 75 | 72 | 92 | 44 | 6.5 |
| 80 | 104 | 90 | 86 | 107 | 51 | 7 |
| 100 | 127 | 110 | 105 | 127 | 61 | 8.5 |
| 125 | 161 | 140 | 134 | 158 | 76 | 10.5 |
| 150 | 184 | 160 | 154 | 180 | 86 | 12 |
| 200 | 249 | 225 | 219 | 247 | 118.5 | 12 |
| 250 | 309 | 280 | 272 | 303 | 146 | 14.5 |
| 300 | 346 | 315 | 306 | 338 | 163. 5 | 15.5 |
| 350 | 392 | 355 | 349 | 380 | 184 | 18.5 |
| 400 | 440 | 400 | 393 | 430 | 206 | 20 |
| 450 | 494 | 450 | 430 | 477 | 231 | 22 |
| 500 | 548 | 500 | 480 | 527 | 256 | 24 |
| 600 | 692 | 630 | 600 | 657 | 321 | 31 |
| 700 | 758 | 710 | 690 | 737 | 361 | 22.5 |
| 800 | 843 | 800 | 780 | 830 | 406 | 20 |
